DC IT Safe
Compact
The modular compact data center for the security of your IT infrastructure.
-
Compact size: dimensions (HxWxD) 1960 x 790 x 1530 mm
-
Dust/water protection IP 56 according to EN 60529
-
Burglary protection RC 2 according to EN 1627/EN 1630
-
Fire protection EI90 according to EN 13501-2 and EN 1363-1
Extended basic protection for KRITIS companies

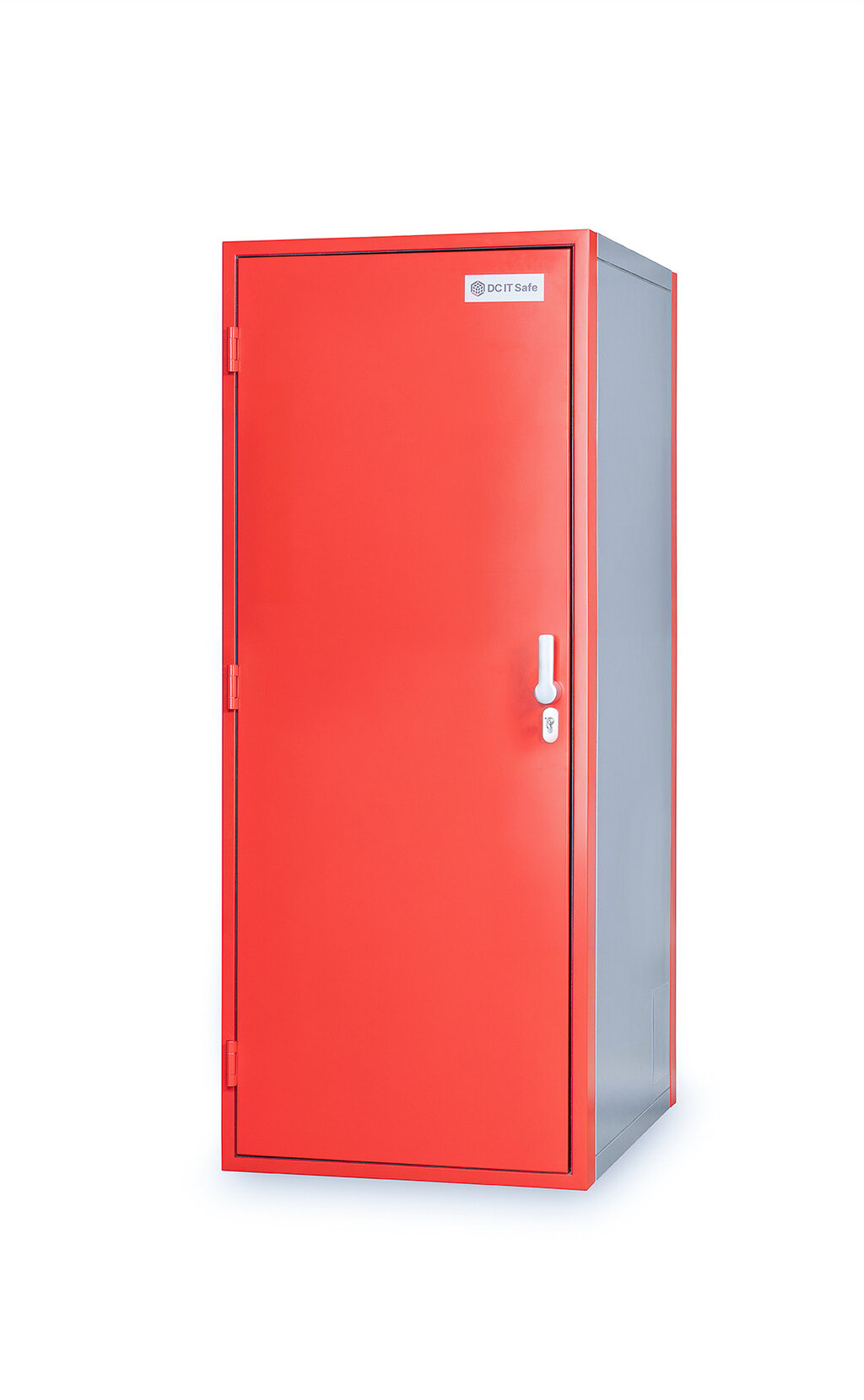

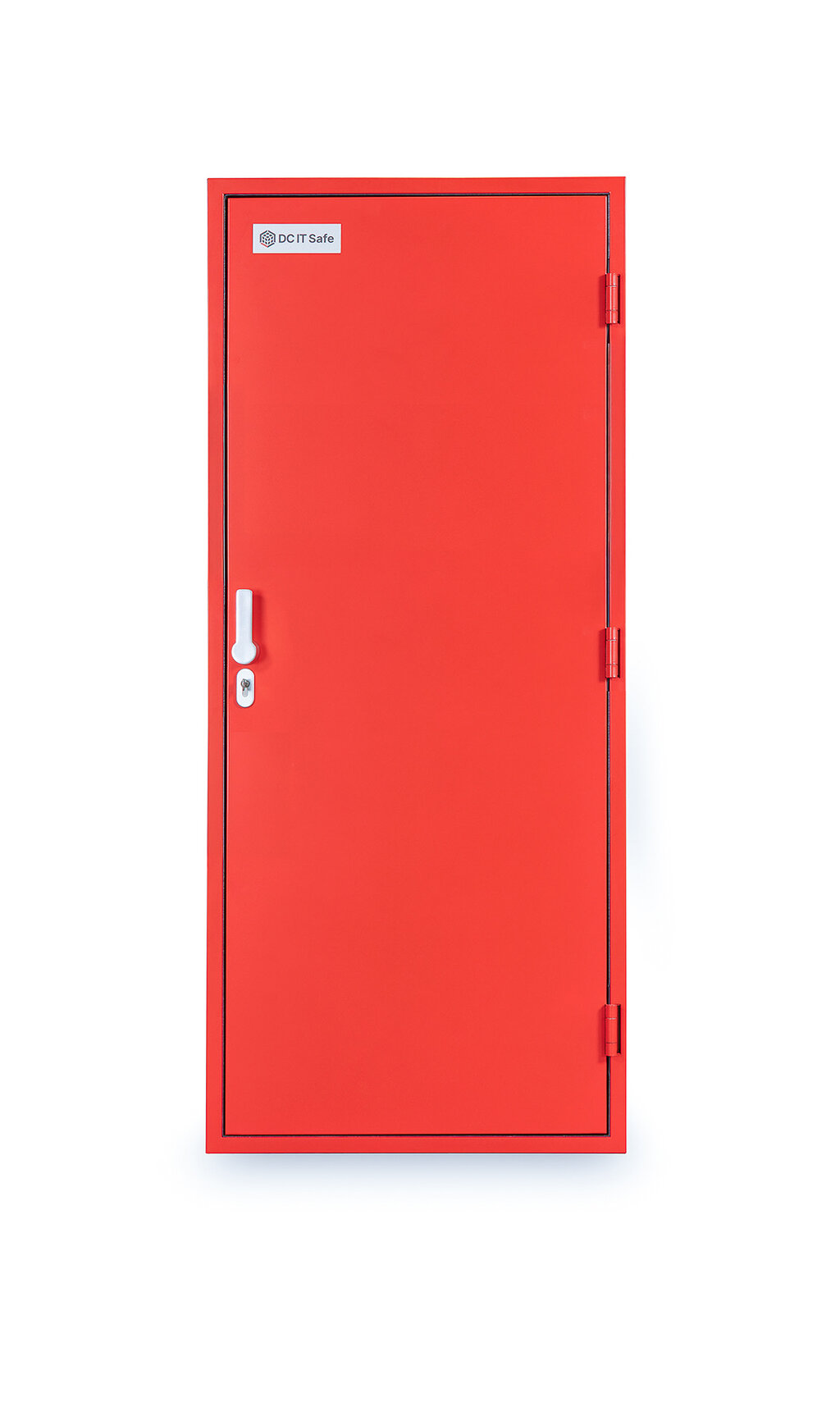

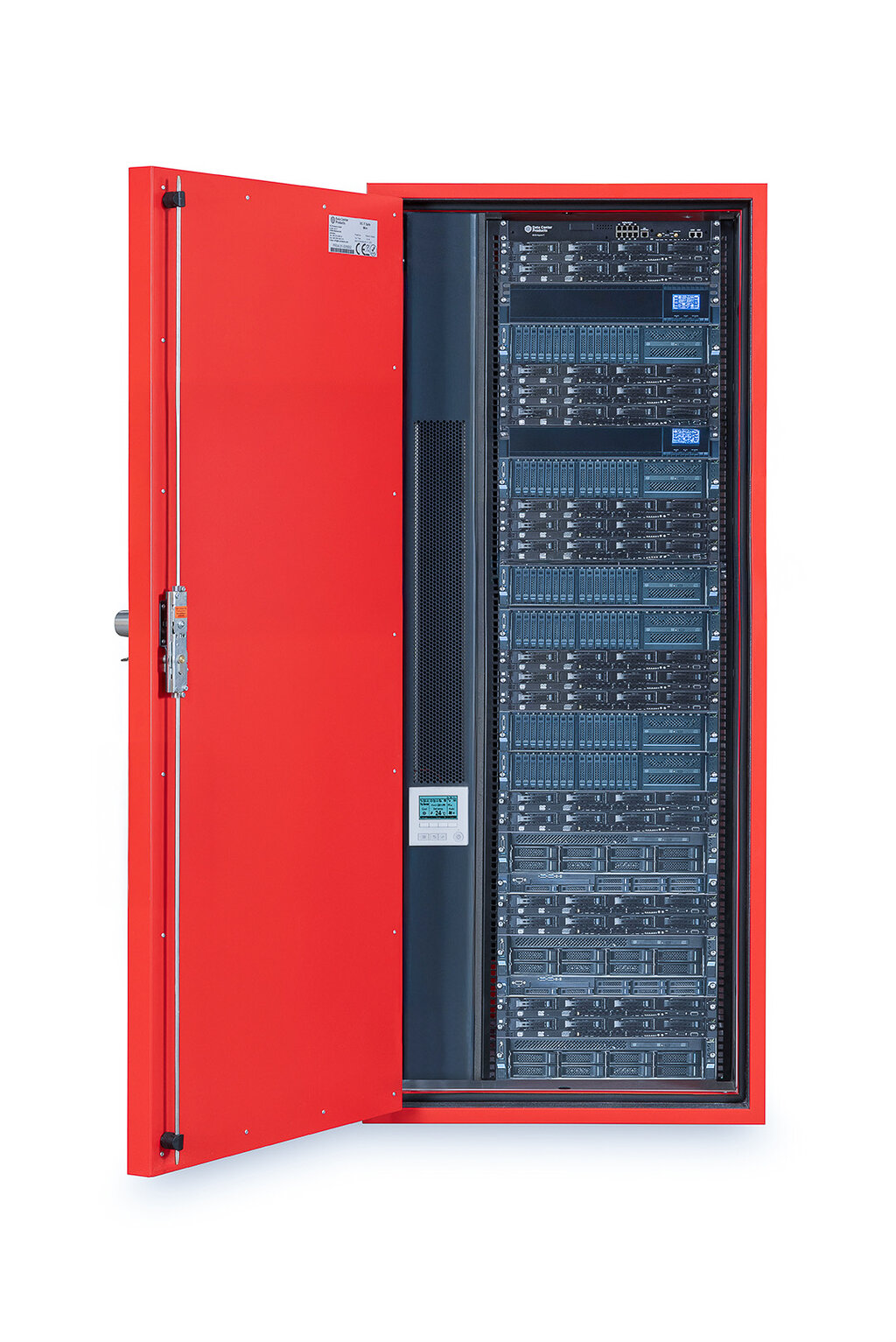

The DC IT Safe Compact is the larger version of the DC IT Safe Mini. It offers stronger basic protection against physical risks and is very well suited for use in industrial environments. The configuration of the interior is optimized and can accommodate up to 38 U (height retention).
Typical end customers for this solution are companies from the KRITIS sectors, as well as industry, healthcare, automotive or even public institutions. Our compact version requires less space than the large safe and is particularly suitable for locations where space is at a premium.
Extended basic protection against physical hazards
The modular IT security enclosure
- Modular IT security enclosure to accommodate a 19" rack (482.6 mm) for basic physical protection with a single-leaf door system on the operator and service side
- Protects your IT from fire, water, dust, intrusion and explosion
- Integrated climate control solution - no outdoor unit required
- Ideal for data-sensitive industries such as law firms, agencies or critical infrastructure industries (CRITIS), e.g. hospitals and healthcare facilities, mobility providers, automotive suppliers, energy providers, public utilities, public institutions, banks and financial institutions, food producers and suppliers, etc.
- Optionally available with integrated UPS system (7U) or additional height units
Standard equipment
Optional equipment
Technical Details
| DIMENSIONS | Without UPS | With UPS |
| Height | 1.965 mm | 1.965 mm |
| Width | 790 mm | 790 mm |
| Depth | 1.530 mm | 1.530 mm |
| Number of height units | 38 horizontal, 0 vertical | 31 horizontal, 0 vertical |
| WEIGHT | ||
| Tare weight (kg) | 800-850 kg | 800-850 kg |
| EQUIPMENT | ||
| Cable bulkheads | 1x fire protection sleeve, 1x soft partition (both in one side wall) | 1x fire protection sleeve, 1x soft partition (both in one side wall) |

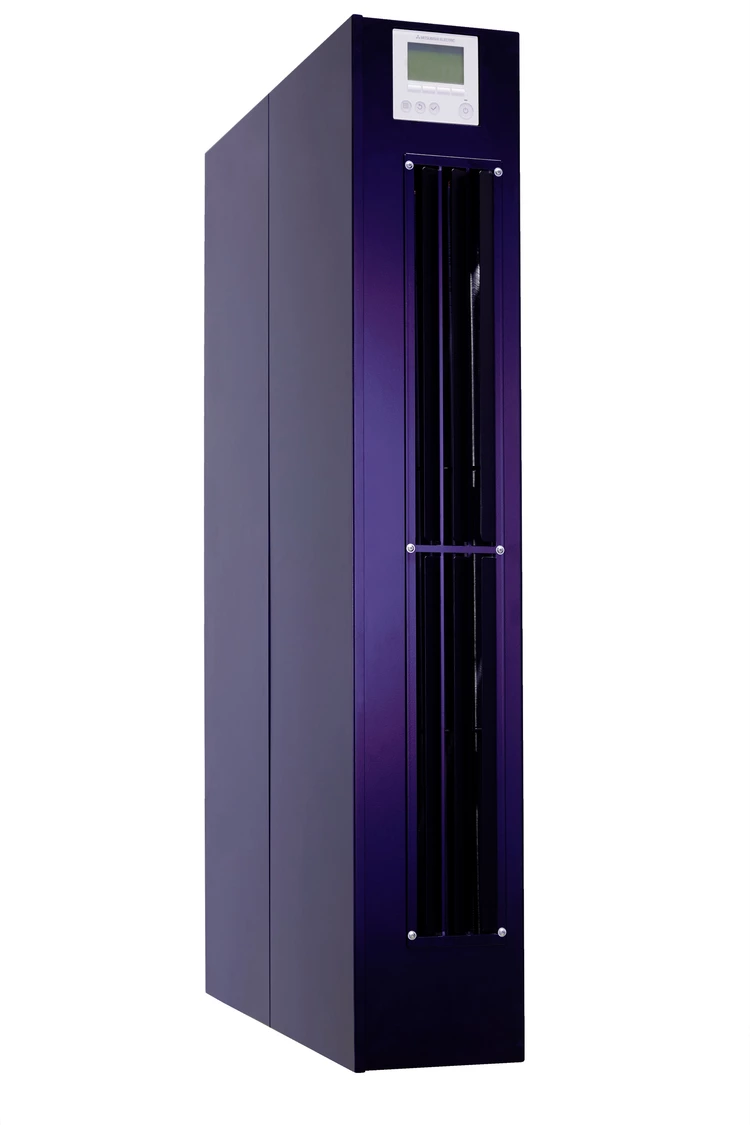

| Air conditioning | Hermetically separated redundant cooling with 1.6-4.5 kW power output | Hermetically separated redundant cooling with 1.6-4.5 kW power output |

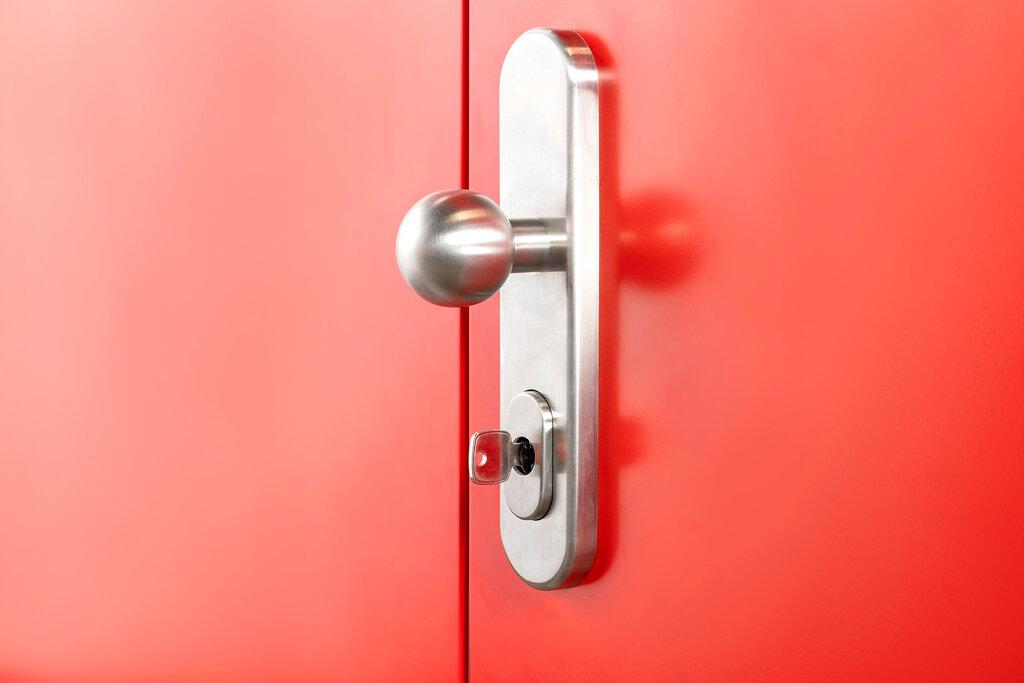

| Door lock | Key lock with profile half cylinder | Key lock with profile half cylinder |
| Optional equipment | Electric profile cylinder lock, monitoring system for permanent system monitoring, passive or intelligent PDU strip, early fire detection, extinguishing system, emergency power generator (UPS) up to 3kVA, closed safe rear panel, various rack accessories | Electric profile cylinder lock, monitoring system for permanent system monitoring, passive or intelligent PDU strip, early fire detection, extinguishing system, emergency power generator (UPS) up to 3kVA, closed safe rear panel, various rack accessories |
