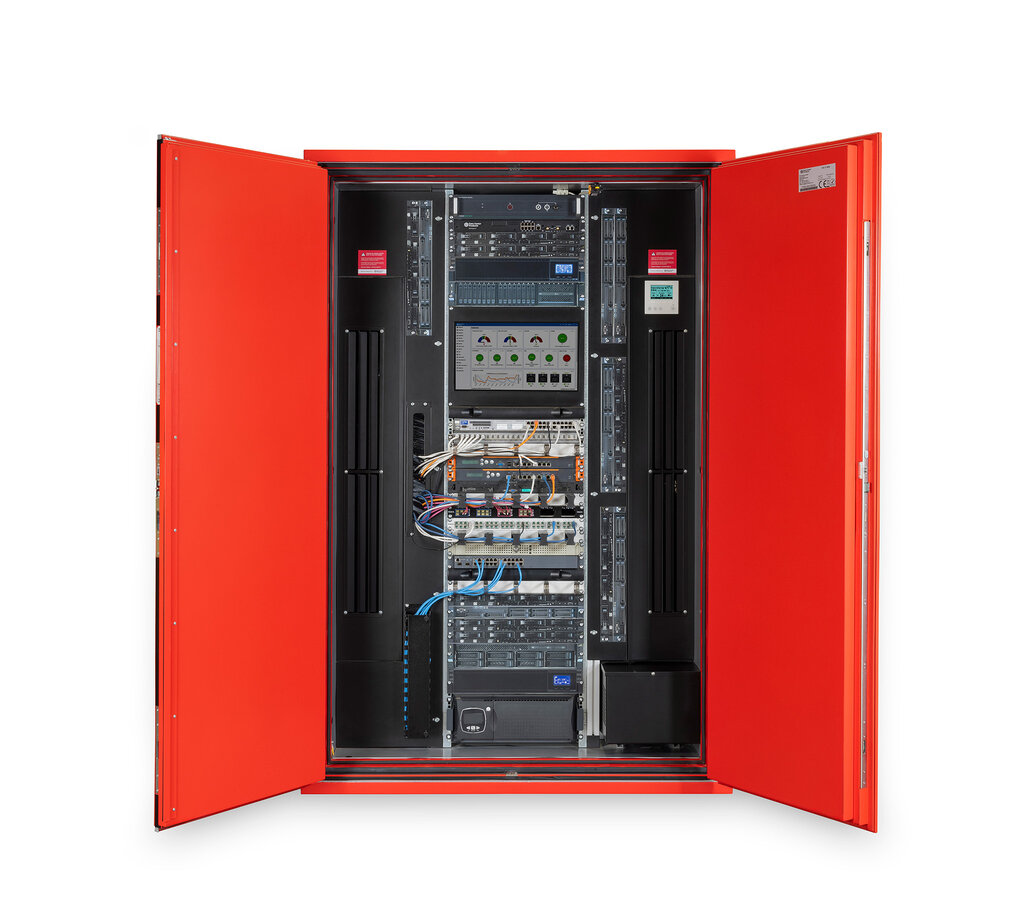

DC IT Safe
56 HE / 62 HE
The modular compact data center for the security of your IT infrastructure.
-
Highly available and secure IT protection
-
Compact on less than 2 m²
-
Flexible and modularly expandable
-
Air conditioners designed for continuous operation
-
Ready for immediate use, available from stock
From industrial customers to healthcare and other industries: Wherever data is critical.
The DC IT Safe is suitable for small and medium-sized companies, companies with decentralized structures (logistics and industrial companies with many locations, or chain stores), but also in the healthcare sector for medical facilities, larger group practices or hospitals. Benefit from space-saving all-round protection for your IT infrastructures.
You can determine the location of your Micro Data Center - a complete and redundant data center on only 2 m² - completely independently of the spatial conditions in your company. Our Micro Data Center can be installed very well in industrial halls or basement floors and protects your data reliably even under difficult conditions.
Extended basic protection against physical hazards
The modular Micro Data Center
DC-ITSafes grow with your requirements
-
Extremely robust and secure for the protection of IT infrastructure and servers on premises.
-
The Micro Data Centers are fully redundant data centers on only 2 m² area with extremely short assembly time.
-
The IT Safes are modularly expandable and can be interlinked. So you can easily equip a small IT room with several racks.
-
DC IT Safe is available in two heights (56 and 62 U), in various designs and different cooling capacities.
Execution types
Equipment options
Technical Details
| Width | 1452 mm |
| Height | 2185 mm |
| Depth | 1470 mm |
| (Other sizes on request) | |
| Profile frame (inch: mm) | 19": 800 x 1200 |
| HE Quantity Horizontal | 44 |
| HE Number Vertical | 12 |
| HE Number Total | 56 |
| Tare weight (kg) | approx. 1100 |
| Maximum load capacity in 19" range (kg) | 1000 |
| Air conditioning | See equipment options |
| Patented, internal click mounting technology | ✓ |
| Self-locking automatic multipoint locking system with solid swing bolts and sealing elements | ✓ |
| Number of soft bulkheads (optionally hard bulkhead or fire protection sleeves) | 4 |
| Possible positioning bulkheads | in side, floor or ceiling elements |
| Possible closure options | See equipment options |
Technical Details
| Width | 1452 mm |
| Height | 2425 mm |
| Depth | 1470 mm |
| (Other sizes on request) | |
| Profile frame (inch: mm) | 19": 800 x 1200 |
| HE Quantity Horizontal | 50 |
| HE Number Vertical | 12 |
| HE Number Total | 62 |
| Tare weight (kg) | Approx. 1100 |
| Maximum load capacity in 19" range (kg) | 1000 |
| Air conditioning | see equipment options |
| Patented, internal click mounting technology | ✓ |
| Self-locking automatic multipoint locking system with solid swing bolts and sealing elements | ✓ |
| Number of soft bulkheads (optionally hard bulkhead or fire protection sleeves) | 4 |
| Possible positioning bulkheads | in side, floor or ceiling elements |
| Possible closure options | See equipment options |
